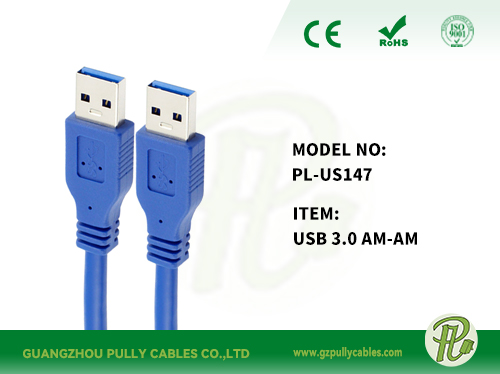

USB 3.0 Type A Male to male
USB 3.0 Male to Male cable is the superspeed and high standard for computer and data connections.It allows transfer data rates up to 5Gbps.and also 10 times faster than USB 2.0 cable.It applys to the data sync of USB-enabled devices.Such as ,Extenal Hard Drives,DVD,Speaker,Radiator,Camera,Blue-Ray Drive,Monitor and so on.
| SPECIFICATIONS: |
Type | USB3.0 |
Connector type | Type A male to Type A male |
Conductor | Tinned Copper |
Plug | Gold -plated |
Shielding | AL Foil+ Braid |
Jacket | PVC |
Jacket Dia. | 5.5mm |
Color of the port | Blue |
Data Transfer Rate | up to 5 Gbps |
| KEY FEATURE: |
♦Backwards compatible with USB 2.0 / 1.1 / 1.0 devices | ||
♦10 Times faster than USB 2.0 | ||
♦Super high-speed USB 3.0 data transfer rates up to 5Gbps | ||
♦USB 3.0 cable can supply up to 900 milliamps of power | ||
♦Aluminum-mylar foil with braided shielding minimizes EM and RF interference | ||
♦provides more power for self-powered USB devices | ||
♦a robust Plug and Play interface | ||
♦RoHS and CE compliant |
| ELECTRICAL SPECIFICATIONS: |
Power | Up to Max .900 mA @5V | ||
Bitrate | 5 Gbit/s | ||
Contact Resistance | Max.2 Ohm | ||
Insulation Resistance | 10M Ohm | ||
Hi-Pot | 300V DC/10ms | ||
Mating Force | 30N max. | ||
Unmating Force | 8N min. | ||
Temperature Rating | –25°C to 85°C | ||
