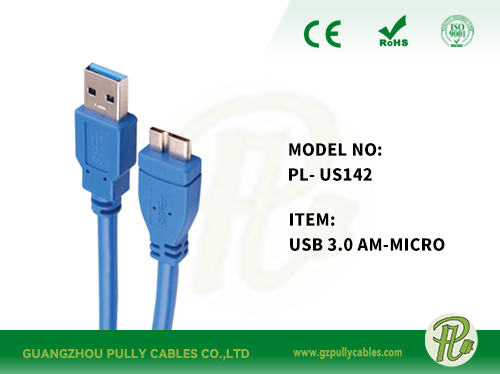

USB 3.0 Type A Male to Micro B
USB 3.0 typA to Micro B is the superspeed and high standard for data transmission and fast charge.it is compatible with Samsung Galaxy S5, Galaxy Note 3, Galaxy Note Pro 12.2, Pentax camera and so on with Type Micro B devices.
| SPECIFICATIONS: |
Type | USB3.0 |
Connector type | Type A male to Micro B |
Conductor | Tinned Copper |
Plug | Gold -plated |
Shielding | AL Foil+ Braid |
Jacket | PVC |
Jacket Dia. | 5.5mm |
Color of the port | Blue |
Data Transfer Rate | up to 5 Gbps |
| KEY FEATURE: |
♦Backwards compatible with USB 2.0 / 1.1 / 1.0 devices | ||
♦10 Times faster than USB 2.0 | ||
♦Super high-speed USB 3.0 data transfer rates up to 5Gbps | ||
♦USB 3.0 cable can supply up to 900 milliamps of power | ||
♦Aluminum-mylar foil with braided shielding minimizes EM and RF interference | ||
♦provides more power for self-powered USB devices | ||
♦a robust Plug and Play interface | ||
♦RoHS and CE compliant |
| ELECTRICAL SPECIFICATIONS: |
Power | Up to Max .900 mA @5V | ||
Bitrate | 5 Gbit/s | ||
Contact Resistance | Max.2 Ohm | ||
Insulation Resistance | 10M Ohm | ||
Hi-Pot | 300V DC/10ms | ||
Mating Force | 30N max. | ||
Unmating Force | 8N min. | ||
Temperature Rating | –25°C to 85°C | ||
