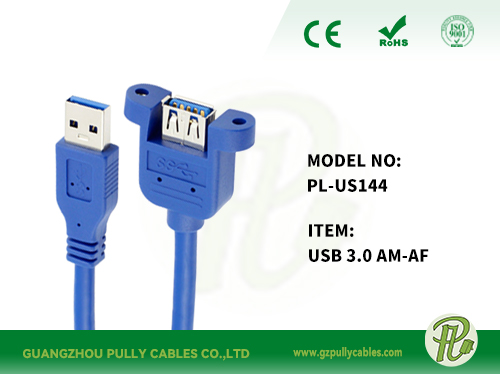

USB 3.0 Type A Male to Female
USB 3.0 Type A male to female( Extension cable)is the superspeed and high standard for computer and data transmission.It is designed to extend the connections between computer ,Laptop,tablet ,MacBook which are with USB type A port ,and various USB peripherals such as USB hub,flash drive,Car reader,hard drive,Bluetooth Adapter and so on.
| SPECIFICATIONS: |
Type | USB3.0 |
Connector | Type A male to Female |
Conductor | Tinned Copper |
Plug | Gold -plated |
Shielding | AL Foil+ Braid |
Jacket | PVC |
Jacket Dia. | 5.5mm |
Color of the port | Blue |
Data Transfer Rate | up to 5 Gbps |
| KEY FEATURE: |
♦Backwards compatible with USB 2.0 / 1.1 / 1.0 devices | ||
♦10 Times faster than USB 2.0 | ||
♦Super high-speed USB 3.0 data transfer rates up to 5Gbps | ||
♦USB 3.0 cable can supply up to 900 milliamps of power | ||
♦Aluminum-mylar foil with braided shielding minimizes EM and RF interference | ||
♦provides more power for self-powered USB devices | ||
♦a robust Plug and Play interface | ||
♦RoHS and CE compliant |
| ELECTRICAL SPECIFICATIONS: |
Power | Up to Max .900 mA @5V | ||
Bitrate | 5 Gbit/s | ||
Contact Resistance | Max.2 Ohm | ||
Insulation Resistance | 10M Ohm | ||
Hi-Pot | 300V DC/10ms | ||
Mating Force | 30N max. | ||
Unmating Force | 8N min. | ||
Temperature Rating | –25°C to 85°C | ||
