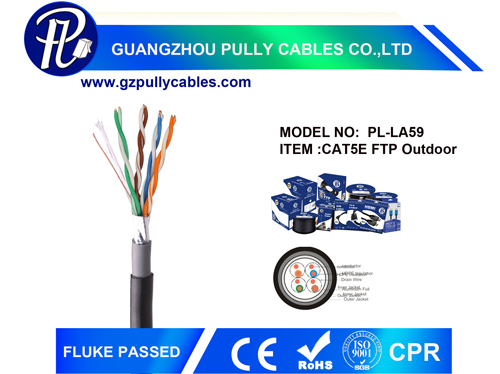

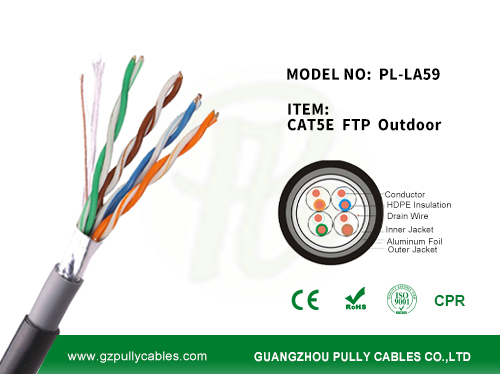

CAT5E FTP Outdoor CABLE
The CAT5E cable provides performance of up to 100 MHz ,Complied to the standard ITA/EIA-568C.2 ,It is suitable for all of performance requirement for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet),155Mbps
SPECIFICATIONS:
conductor | Solid Bare Copper |
Conductor Dia | 24AWG |
Insulation | HDPE |
Insulation Dia. | 0.91±0.05mm |
Drain Wire | CCA |
Shield | AL Foil |
Inner Jacket | PVC |
Outer Jacket | PE |
Jacket Dia. | 6.3±0.2mm |
Number of shielded pairs | |
Color code pair 1 | Blue-White / Blue |
Color code pair 2 | Orange-White / Orange |
Color code pair 3 | Green-White / Green |
Color code pair 4 | Brown-White / Brown |
ELECTRICAL CHARACTERISTICS:
High frequency (at 20°) | |||||||
Type | Attenuation (db/100) | NEXT (db) | PS NEXT (db) | PS ACR (db) | PS ELFEXT (db) | ELEFXT (db ) | Return Loss(db) |
1 | 2.0 | 67.0 | 64.0 | 62.2 | 61.0 | 64.0 | 20.0 |
4 | 4.1 | 58.0 | 55.0 | 51.1 | 49.0 | 52.0 | 23.1 |
8 | 5.8 | 54.0 | 51.0 | 44.9 | 43.0 | 46.0 | 24.5 |
10 | 6.5 | 52.0 | 49.0 | 42.7 | 41.0 | 44.0 | 25.0 |
16 | 8.2 | 49.0 | 46.0 | 37.8 | 37.0 | 40.0 | 25.0 |
20 | 9.3 | 48.0 | 45.0 | 35.3 | 35.0 | 38.0 | 25.0 |
25 | 10.4 | 46.0 | 43.0 | 32.7 | 33.0 | 36.0 | 24.3 |
31.2 | 11.7 | 45.0 | 42.0 | 30.0 | 31.0 | 34.0 | 23.6 |
62.5 | 17.0 | 40.0 | 37.0 | 20.1 | 25.0 | 28.8 | 21.5 |
100 | 22.0 | 37.0 | 34.0 | 11.9 | 21.0 | 24.0 | 20.1 |
Characteristic Impedance: | 100±15Ω |
Conductor Resistance | ≤9.38Ω/100m |
Insulation Resistance: | 100mΩ |
Mutual Capacitance: | <5.6nF/100m |
Resistance Unbalance: | 5%Max |
Capacitance Unbalance: | 330pF/100m |
