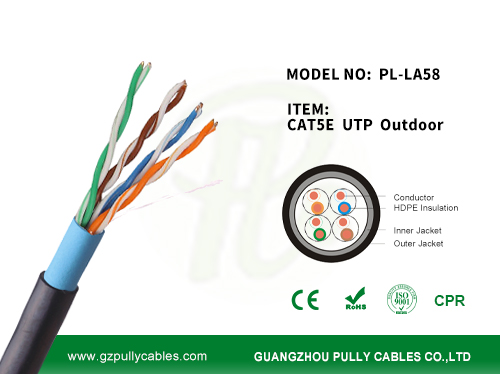

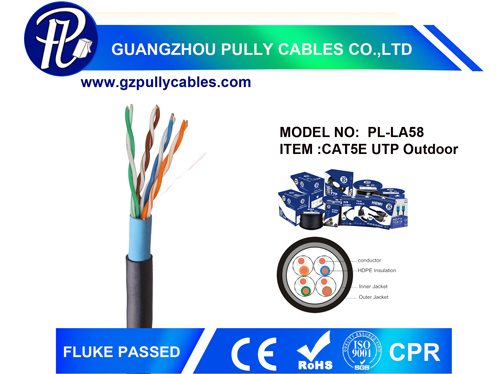

CAT5E UTP Outdoor Cable

CAT5E UTP Outdoor CABLE


The CAT5E cable provides performance of up to 100 MHz ,Complied to the standard ITA/EIA-568C.2 ,It is suitable for all of performance requirement for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet),155Mbps

 SPECIFICATIONS:

conductor
Solid Bare Copper

Conductor Dia

24AWG
Insulation HDPE
Insulation Dia.0.91±0.05mm
Inner JacketPVC
Outer Jacket PE
Jacket Dia.5.9±0.2mm
Number of shielded pairs
Color code pair 1Blue-White / Blue
Color code pair 2Orange-White / Orange
Color code pair 3Green-White / Green
Color code pair 4Brown-White / Brown

ELECTRICAL CHARACTERISTICS:

High frequency (at 20°)
TypeAttenuation (db/100)

 NEXT    (db)

 PS NEXT   (db)PS ACR   (db)PS ELFEXT (db)ELEFXT  (db )Return Loss(db)
12.067.064.062.261.064.020.0
44.158.055.051.149.052.023.1
85.854.051.044.943.046.024.5
106.552.049.042.741.044.025.0
168.249.046.037.837.040.025.0
209.348.045.035.335.038.025.0
2510.446.043.032.733.036.024.3
31.2
11.745.042.030.031.034.023.6
62.517.040.037.020.125.028.821.5
10022.037.034.011.921.024.020.1
Characteristic Impedance:100±15Ω
Conductor Resistance≤9.38Ω/100m
Insulation Resistance:100mΩ
Mutual Capacitance:<5.6nF/100m
Resistance Unbalance:5%Max
Capacitance Unbalance:330pF/100m
