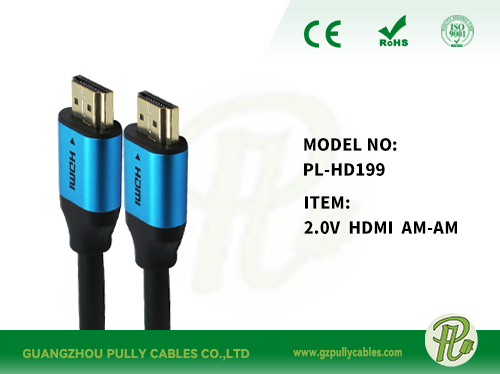

2.0V HDMI CABLE

2.0V HDMI Male To Male Cable

PULLY high speed hdmi cables are the perfect for home theatre or desktop audio &vidio applications.Its the uncompressed,and send send audio and video between a source and a display without signal loss or degradation.it supports 1080p@60Hz,4Kx2K,4K UHD@60Hz,3D ,audio return channel &DTS-HD master audio and so on.


 SPECIFICATIONS:

Version

2.0V(19+1)

Connector Type:

HDMI(19pin)Male to HDMI(19pin)Male

Plug Mould

 Zinc Alloy Connector

Conductor

Bare Copper/CCS

Conductor Guage

30AWG/28AWG/26AWG/24AWG

Insulation

FPE/HDPE

Shield

Aluminum Foil & Braid

Jacket

PVC

Jacket Dia.

5.5mm-9.0mm

Mesh

Nylon/Cotton Mesh

Ferrite

With/without 2 ferrites

Connector

24K Gold Plated

Support

4Kx2K(3840×2160 @60Hz) 10.2 Gbps;4096×2160 at 60 Hz 18 Gbps,;3D ;1080P ;Ethernet;Audio Return Channel;Chroma Sampling 4:4:4.

IC/Amplifier

≥ 25m

Length

0.5m to 80m

4K Capalilities

Resolution and Refresh Rate

Chroma Sampling

Max.Bit Depth per color

Data Rate

4K Capalilities

4096×2160 at 60 Hz

4:4:4

8bit

18.0Gbps

4K Capalilities

3840×2160 at 60 Hz

4:4:4

8bit

18.0Gbps

4K Capalilities

4096×2160 at 30 Hz

4:4:4

8bit

10.2Gbps

4K Capalilities

3840×2160 at 30 Hz

4:4:4

8bit

10.2Gbps

4K Capalilities

4096×2160 at 60 Hz

4:4:4

8bit

10.2Gbps

4K Capalilities

3840×2160 at 60 Hz

4:4:4

8bit

10.2Gbps

  ELECTRICAL SPECIFICATIONS:

voltage Rating:

30V

Signal Bandwidth

10.2Gbps /18Gbps

Nominal Impedance with Tolerance

100±10ohms

Nominal Compacitance:

<700PF

DC Resistance:

Max 1450 ohms/KM at 20C0

Working Temperature

20℃~80℃
