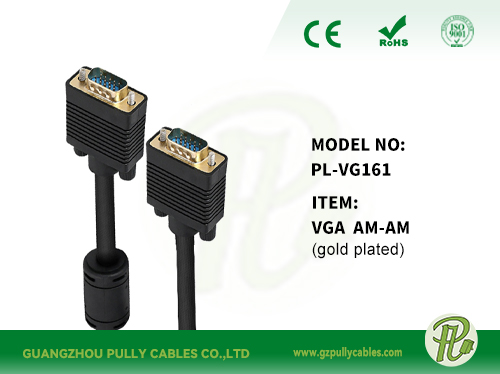

VGA Male to Male Cable
VGA cable is with a three-row 15-pin DE-15 connector,It used to connect and send signals between computers and monitors,Television, Laptop,Projector and so on .It Can support variouse VGA resolutions,ranging from 320×400px @70 Hz / 320x480px @60 Hz (12.6 MHz of signal bandwidth) to 1280×1024px (SXGA) @85 Hz (160 MHz) and up to 2048×1536px (QXGA) @85 Hz (388 MHz).
Version | 3+2/3+4/3+5/3+6/3+9 |
Connector Type: | 15 PIN VGA Male To VGA Male |
Plug Mould | Injection |
Conductor | Bare Copper/CCS |
Connector Plug | Gold plated/ Nickel plated |
Conductor Guage | 30AWG/28AWG/26AWG/24AWG/22AWG.. |
Insulation | Foamed PE |
Shield | Aluminum Foil & Braid |
Jacket | PVC |
Jacket Dia. | 5.5-8.0mm |
Ferrite | 2 ferrites |
Resulution | 320×400px @70 Hz / 320x480px @60 Hz (12.6 MHz of signal bandwidth) to 1280×1024px (SXGA) @85 Hz (160 MHz) and up to 2048×1536px (QXGA) @85 Hz (388 MHz). |
Length | 1.5m to 80m |
| ELECTRICAL SPECIFICATIONS: |
Conductor Resistance | @20°C Max. 30AWG:376.96Ω/Km 28AWG：237.25Ω/Km | ||
Norminal Capacitance | 58PF/M | ||
Norminal impedance with Tolerance | 75±5Ω | ||
Maximum Resolution Supported | 2048×1536 | ||
Insulation Resistance | 10MΩ-KM min at 20°C DC 500V | ||
Dielectric Strenth | AC 500V/1 Minute | ||
| PHYSICAL CHARATERISTICS: |
Voltage Rating | 30V | ||
Minimum Bend Radius | 85mm | ||
Contact Resistance | 2 ohm max | ||
Working Temperature | -25℃-80℃ | ||
