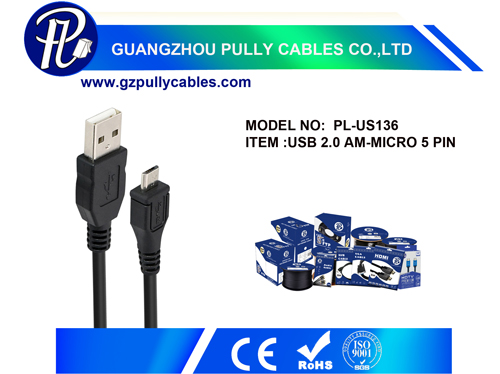

USB 2.0 Type A Male to Micro 5PIN
USB 2.0 typA to Micro B is a Universal Serial Bus (USB) standard for data transmission and charge .It allows transfer data rates up to 480 Mbps.and is compatible with most of Android smartphones ,Notebook,Cell phone ,Bluetooth speaker,wireless keyboards, MP3 players and many devices with Micro USB-Port.
| SPECIFICATIONS: |
Type | USB 2.0 |
Connector type | Type A male to Micro 5PIN |
Conductor | Bare Copper |
Plug | Nickel plated |
Shielding | AL Foil+ Braid |
Jacket | PVC |
Jacket Dia. | 5.0mm |
Color of the port | white |
Data Transfer Rate | up to 480 Mbps |
| KEY FEATURE: |
♦Backwards compatible with USB 2.0 / 1.1 / 1.0 devices | ||
♦can supply up to 500 milliamps of power | ||
♦Aluminum-mylar foil with braided shielding minimizes EM and RF interference | ||
♦a robust Plug and Play interface | ||
♦RoHS and CE compliant |
| ELECTRICAL SPECIFICATIONS: |
Power | Up to Max .500 mA @5V | ||
Bitrate | 480 Mbps | ||
Contact Resistance | 30 Ohm max. | ||
Insulation Resistance | 10M OHM | ||
Hi-Pot: | DC 300V 10ms | ||
Mating Force | 35N max. | ||
Unmating Force | 10N min | ||
Temperature Rating | –30°C to 85°C | ||
