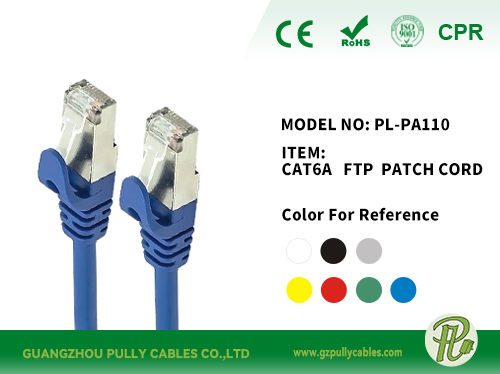

CAT6A U/FTP PATCH CORD
| DESCRIPTION: |
Cat6A U/FTP Cable provides excellentl performance to support extremely high speed applications, The individually shielded pairs ensure maximum transmission and improve alien crosstalk performance, with a frequency of 500MHZ can transmit data at 10BAST-T,100BASETX,1000BASE-T and 10G BASE-T(Gigabit Ethernet) and also complies to standard TIA/EIA-56.2-D&IEC61156.
| SPECIFICATIONS: |
Conductor | Solid Bare Copper /Stranded Copper |
Conductor Dia. | 23AWG /26AWG/ |
Insulation | HDPE |
Insulation Dia. | 1.3±0.02mm |
Pair Screen: | each pair surrounded individually by Al Foil |
Jacket | PVC/LSZH |
Drain Wire | CCA |
Jacket Dia. | 7.5±0.2mm |
Connecotor | Metal RJ45 8P8C |
Plug | Gold plated |
Color | Optional |
Length | Optional |
Number of shielded pairs | |
Colour code pair 1 | Blue-White / Blue |
Colour code pair 2 | Orange-White / Orange |
Colour code pair 3 | Green-White / Green |
Colour code pair 4 | Brown-White / Brown |
| ELECTRICAL CHARACTERISTICS： |
Characteristic Impedance: | 100±15Ω | |
Conductor Resistance | ≤9.38Ω/100m | |
Mutual Capacitance: | <5.6nF/100m | |
Resistance Unbalance: | 5%Max | |
Capacitance Unbalance: | 330pF/100m | |
Current Rating | 1.5 A | |
Voltage Rating | 150 VAC | |
Dielectric Withstanding Voltage | 1000 VAC | |
Insulation Resistance | 500 MO (minimum) | |
| ENVIRONMENTAL CHARACTERISTICS : |
Operation range | -10°C to +60°C | |
Storage | -40°C to +70°C | |
