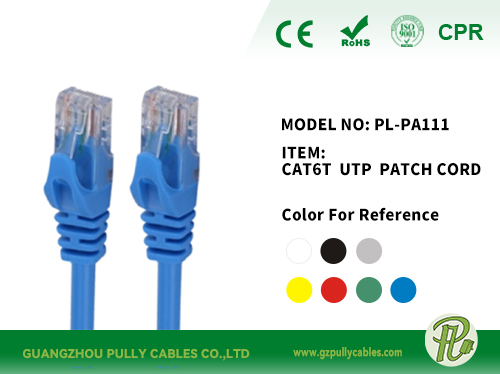

CAT6 UTP PATCH CORD
CAT6 patch cord are used for connecting the network equipment to patch panels and telecommunications outlets,It is a standardized twisted pair cable used specifically in gigabit(Gb) Ethernet networks at a higher transmission frequency of 250MHz, exceed performance requirements specified by the TIA/EIA-568B.2 &ISO/IEC 11801.
SPECIFICATIONS:
Conductor | Solid Bare Copper or Strandard |
Conductor Dia. | 23AW/22AWG |
Insulation | HDPE |
Insulation Dia. | 0.98±0.02mm |
Jacket | PVC |
Connector | CAT6 RJ458P8C |
Plug | Gold plated |
Jacket Dia. | 6.0±0.2mm |
Color | Optional |
Length | Optional |
Number of shielded pairs | |
Colour code pair 1 | Blue-White / Blue |
Colour code pair 2 | Orange-White / Orange |
Colour code pair 3 | Green-White / Green |
Colour code pair 4 | Brown-White / Brown |
ELECTRICAL CHARACTERISTICS: |
Characteristic Impedance: | 100±15Ω | |
Conductor Resistance | ≤9.38Ω/100m | |
Mutual Capacitance: | <5.6nF/100m | |
Resistance Unbalance: | 5%Max | |
Capacitance Unbalance: | 330pF/100m | |
Current Rating | 1.5 A | |
Voltage Rating | 150 VAC | |
Dielectric Withstanding Voltage | 1000 VAC | |
Insulation Resistance | 500 MO (minimum) |
ENVIRONMENTAL CHARACTERISTICS : |
Operation range | -10°C to 60°C | |
Storage | – 40° C to +70° C |
