Kx6/7with Power Cable

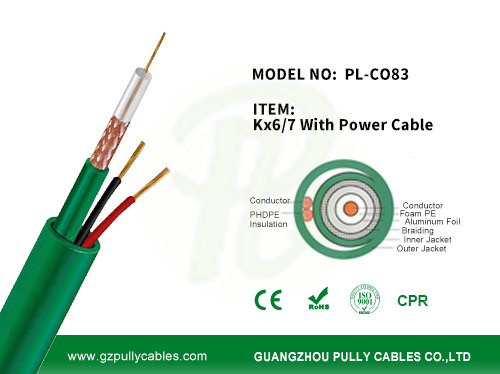

COAXIAL CABLE Kx6/Kx7 WITH POWER CABLE

Kx6/Kx7 with power cable is apply for CATV-community antenna television,CCTV-closed-circuit television and DBS-direct broadcasting satellite .It has a characteristic impedance of 75 ohms, its Excellent transmission with fast speed.


 SPECIFICATIONS:

Conductor

Bare Copper

Conductor Dia.

Stranded 7*0.2mm

Insulation

Solid PE

Insulation Dia.

3.7mm

Shielding

Aluminium Foil

Braid Shielding

CCA/AL

Braid Coverage Area (%)

60%-100%

Jacket

PVC

Jacket Dia

6.0mm

Power Cable

Conductor Material

BC/CCA

Insulation

PVC

Conductor Size

2×0.5mm² / 2×0.75mm²/2×1.5mm²

Jacket

PVC

Jacket Dia

4.0mm

Colors

Green

Length&Package

100/200 with PE film Packing


305m/500m with wooden reel packing

 ELECTRICAL CHARACTERISTICS FOR Kx6/Kx7:

Max.DC Inner Conductor Resistance

87.5 Ohm/km

Max.DC Outer Conductor Resistance

32.5 Ohm/km

Characteristic Impedance

52±2Ω

Nom. Mutual Capacitance

67 pf/m

Velocity Radio

66%

Dielectric Strength

1000 vac

Min. Insulation Resistance

5000 MOhms*km

Operating Voltage

300V

Coaxial cable signal (Attenuation)Loss per 100 ft

Frequency(MHz)

Max.Attenuation(db/100ft)

5 MHZ

0.92db

55MHZ

2.21db

200 MHZ

4.09db

400MHZ

5.49db

550MHz

6.40db

750 MHZ

7.50db

870 MHZ

8.09.0db

1000MHz

8.73db

 ELECTRICAL CHARACTERISTICS FOR POWER CABLE:

Type

Max.DC Inner Conductor Resistance

2×0.5mm²

36 Ohm/km

2×0.75mm²

24 Ohm/km

2×1.5mm²

14 Ohm/km
