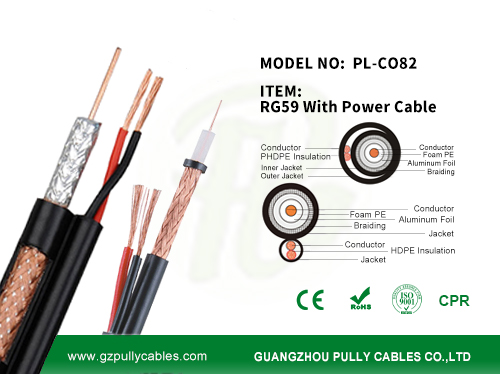

COAXIAL CABLE RG59 WITH POWER CABLE
RG59 Coaxial with Power cable allows installers to run both the video and power to security cameras using a single cable run.it also offers maximum protection from electromagnetic interference as its heavily shielded so that it has the durability to handle long-term installation over long-distance runs.
| SPECIFICATIONS: |
Conductor | BC/Copper Clad Steel(CCS 23%)) |
Conductor Dia. | 20AWG |
Insulation | FPE |
Insulation Dia. | 3.66 mm |
Shielding | Aluminium Foil |
Braid Shielding | CCA/AL |
Braid Coverage Area (%) | 60%-100% |
Jacket | PVC |
Jacket Dia | 6.0±0.2mm |
Power Cable | |
Conductor Material | BC/CCA |
Insulation | PVC |
Conductor Size | 2×0.5mm² / 2×0.75mm²/2×1.5mm² |
Jacket | PVC |
Jacket Dia. | 4.0mm |
Colors | Optional |
Length& Package | 100/200 with PE film Packing |
305m/500m with wooden reel packing | |
| ELECTRICAL CHARACTERISTICS FOR RG59: |
Max.DC Inner Conductor Resistance | 320 Ohm/km | |
Max.DC Outer Conductor Resistance | 45 Ohm/km | |
Characteristic Impedance | 75 ±3Ω | |
Nom. Mutual Capacitance | 68 pf/m | |
Velocity Radio | 66% | |
Dielectric Strength | 1000 vac | |
Min. Insulation Resistance | 0000 MOhms*km | |
Operating Voltage | 300V | |
Coaxial cable signal (Attenuation)Loss per 100 ft | |||
Frequency(MHz) | Max.Attenuation(db/100ft) | ||
1 MHZ | 0.4db | ||
10 MHZ | 1.4db | ||
50MHZ | 3.3db | ||
100 MHZ | 4.9db | ||
200 MHZ | 7.3db | ||
400MHZ | 11.2db | ||
700 MHZ | 16.9db | ||
900 MHZ | 20.1db | ||
1000MHz | 21.5db | ||
| ELECTRICAL CHARACTERISTICS FOR POWER CABLE: |
Type | Max.DC Inner Conductor Resistance | |
2×0.5mm² | 36 Ohm/km | |
2×0.75mm² | 24 Ohm/km | |
2×1.5mm² | 14 Ohm/km | |
