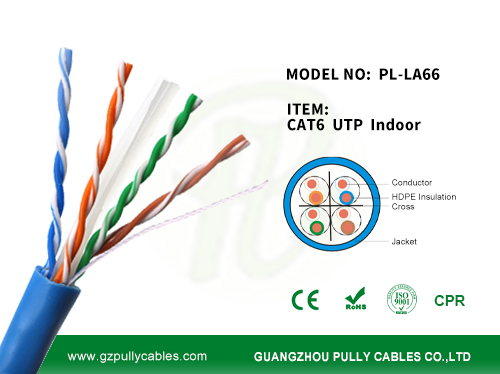

CAT6 UTP INDOOR CABLE
CAT6 is a standardized twisted pair cable used specifically in gigabit(Gb) Ethernet networks at a higher transmission frequency of 250MHz,and its feature is more stringent specifications for crosstalk and system noise .It applys to 10 BASE-T,100BASE-TX&1000BASE-T ETHERNET and 10GBASE-T ETHERNET
SPECIFICATIONS:
Conductor | Solid Bare Copper |
Conductor Dia. | 23AWG 0.57mm |
Insulation | HDPE |
Insulation Dia. | 0.98±0.02mm |
Jacket | PVC |
Jacket Dia. | 6.1±0.2mm |
Number of shielded pairs | |
Color code pair 1 | Blue-White / Blue |
Color code pair 2 | Orange-White / Orange |
Color code pair 3 | Green-White / Green |
Color code pair 4 | Brown-White / Brown |
ELECTRICAL CHARACTERISTICS:
High frequency (at 20°) | |||||||
Type | Attenuation | NEXT | PS NEXT | PS ACR | PS ELFEXT (db) | ELEFXT (db ) | Return Loss |
1 | 2.0 | 74.3 | 72.3 | 70.3 | 64.8 | 67.8 | 20.0 |
4 | 3.8 | 65.3 | 63.3 | 59.5 | 52.8 | 55.8 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 53.5 | 46.7 | 49.7 | 24.5 |
10 | 6 | 59.3 | 57.3 | 51.3 | 44.8 | 47.8 | 25.0 |
16 | 7.6 | 56.2 | 54.2 | 46.6 | 40.7 | 43.7 | 25.0 |
20 | 8.5 | 55.0 | 53.0 | 44.0 | 39.0 | 42.0 | 25.0 |
25 | 9.5 | 53.0 | 51.0 | 42.0 | 37.0 | 40.0 | 24.0 |
31.2 | 10.7 | 51.9 | 49.9 | 39.2 | 34.9 | 37.9 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 30.0 | 28.9 | 31.9 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 22.5 | 24.8 | 27.8 | 20.1 |
200 | 29 | 39.8 | 37.8 | 8.8 | 18.8 | 21.8 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 3.5 | 16.8 | 19.8 | 17.3 |
Characteristic Impedance: | 100±15Ω |
Conductor Resistance | ≤9.38Ω/100m |
Insulation Resistance: | 100mΩ |
Mutual Capacitance: | <5.6nF/100m |
Resistance Unbalance: | 5%Max |
Capacitance Unbalance: | 330pF/100m |
