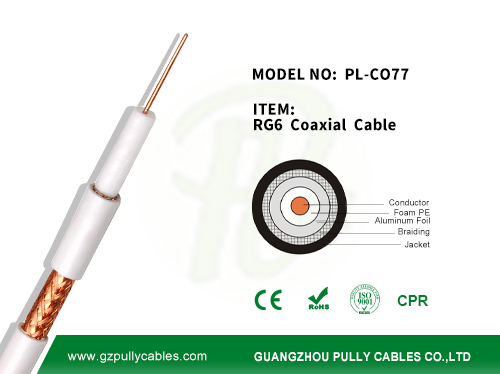

COAXIAL CABLE RG6
RG6 is used in a wide variey of residential and commercial applications.It has a characteristic impedance of 75 ohms,and it most used for HDTV, Cable Television and Security Camera Systems. RG-6 cables are also used in professional video applications, carrying either baseband analog video signals or serial digital interface (SDI) signals.
| SPECIFICATIONS: |
Conductor | BC/Copper Clad Steel(CCS 23%)) |
Conductor Dia. | Solid 18AWG |
Insulation | FPE |
Insulation Dia. | 4.7 mm |
Shield | Aluminium Foil |
Braid Shielding | CCA/AL |
Braid Coverage Area (%) | 60%-100% |
Jacket | PVC |
Jacket Dia | 6.86mm |
Colors | Optional |
Length& Package | 100/200 with PE film Packing |
305m/500m with wooden reel packing |
| Electrical Characteristics for RG6: |
Max.DC Inner Conductor Resistance | 121 Ohm/km | |
Max.DC Outer Conductor Resistance | 45 Ohm/km | |
Characteristic Impedance | 75 ±3Ω | |
Nom. Mutual Capacitance | 53.15pf/m | |
Velocity Radio | 82% | |
Dielectric Strength | 1000 vac | |
Min. Insulation Resistance | 10000 MOhms*km | |
Operating Voltage | 300V | |
Coaxial cable signal (Attenuation)Loss per 100 ft | |||
Frequency(MHz) | Max.Attenuation(db/100ft) | ||
1 MHZ | 0.2db | ||
10 MHZ | 0.6db | ||
50MHZ | 1.4db | ||
100 MHZ | 2.0db | ||
200 MHZ | 2.8db | ||
400MHZ | 4.3db | ||
700 MHZ | 5.6db | ||
900 MHZ | 6.0db | ||
1000MHz | 6.1db | ||
