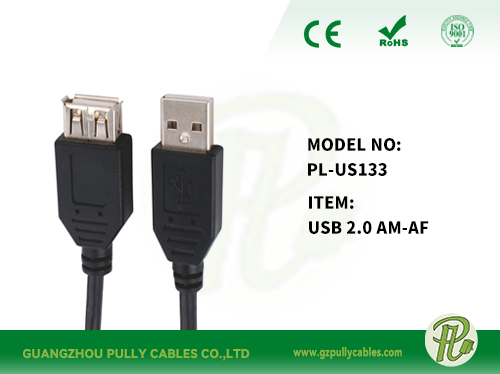

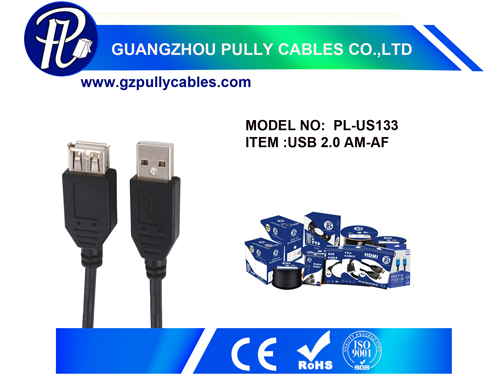

USB 2.0 Type A Male to Female
USB 2.0 Type A male to female( Extension cable)a Universal Serial Bus (USB) standard for computer and data transmission.It allows transfer data rates up to 480 Mbps.It is designed to extend the connections between computer ,Laptop,tablet ,which are with USB type A port ,and various USB peripherals.
| SPECIFICATIONS: |
Type | USB 2.0 |
Connector type | Type A male to Female |
Conductor | Bare Copper |
Plug | Nickel-Plated |
Shielding | AL Foil+ Braid |
Jacket | PVC |
Jacket Dia. | 5.0 mm |
Color of the port | white |
Data Transfer Rate | up to 480 Mbps |
| KEY FEATURE: |
♦Backwards compatible with USB 2.0 / 1.1 / 1.0 devices | ||
♦can supply up to 500 milliamps of power | ||
♦Aluminum-mylar foil with braided shielding minimizes EM and RF interference | ||
♦a robust Plug and Play interface | ||
♦RoHS and CE compliant |
| ELECTRICAL SPECIFICATIONS: |
Power | Up to Max .500 mA @5V | ||
Bitrate | 480 Mbps | ||
Contact Resistance | 30 Ohm max. | ||
Insulation Resistance | 10M OHM | ||
Hi-Pot: | DC 300V 10ms | ||
Mating Force | 35N max. | ||
Unmating Force | 10N min | ||
Temperature Rating | –30°C to 85°C | ||
