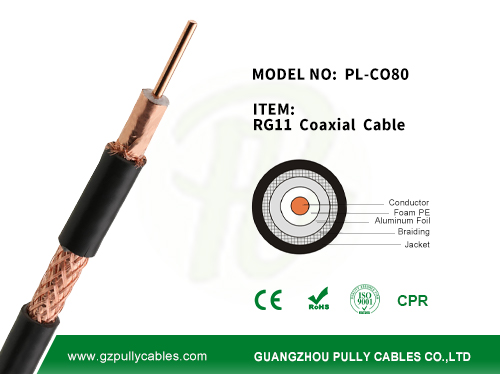

RG11 Coaxial Cable
COAXIAL CABLE RG11
RG11 coaxial cable is more thick conductor than other video cables to give more room to transfer signal and provide more higher speeds ,Its excellent attenuation feature and low signal loss. and also offers unsurpassed performance in audio&video applications such as CATV ,CCTV ,Satellite ,HDTV ,TV Antenna and distribution.
SPECIFICATIONS:
| Conductor | BC/Copper Clad Steel(CCS 23%)) |
| Conductor Dia. | 1.63 ±0.05 |
| Insulation | Foamed PE |
| Insulation Dia. | 7.2 ±0.01 |
| Shield | Aluminium Foil |
| Braid Shielding | CCA/AL |
| Braid Coverage Area (%) | 60%-100% |
| Jacket | PVC |
| Jacket Dia | 10.5 mm |
| Colors | Optional |
| Length& Package | 100/200 with PE film Packing /plastic reel |
| 305m/500m with wooden reel packing |
| Coaxial cable signal (Attenuation)Loss per 100 ft | |
| Frequency(MHz) | Max.Attenuation(db/100ft) |
| 1 MHZ | 0.2db |
| 10 MHZ | 0.4db |
| 50 MHZ | 1.0db |
| 100 MHZ | 1.6db |
| 200 MHZ | 2.3db |
| 400 MHZ | 3.5db |
| 700 MHZ | 4.7db |
| 900 MHZ | 5.4db |
| 1000 MHZ | 5.6db |
